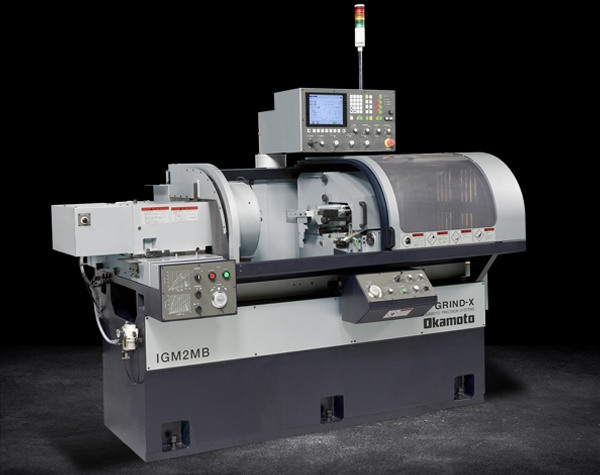

IGM-2MB
IGM-2MB
Control Internal Grinder
Overview/Features:
The IGM-2MB is the truly the production man’s machine. Rigid design and construction stands up to rigorous high-volume production work. The linear slide and ball screw table motion delivers high-speed table movement speed up to 800 ipm.
- Rigid construction. Superb Accuracy.
- Standard 5hp grinding spindle motor.
- MDI Control with 8.4" color LCD display.
- User friendly control with conversational software. Teach function allows easy set-up of grinding processes.
- 36 program storage capacity.
Features:

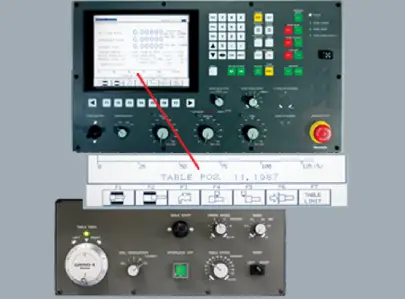

Main Control and Position Control
Oil Mist Unit
Single Point Dresser with Diamond Tool
Specifications:
| Internal Diameter to be Ground | 0.24″ ~ 8.0″ |
| Maximum Grinding Stroke | 8″ |
| Swing over table | 24″ |
| Workhead Spindle Speed | 50 ~ 850 rpm |
| Grinding Spindle | 5 hp |
| Floor Space (W x D x H) | 96″ x 54″ x 69″ |
| Weight | 6,160 lbs |
Standard & Optional Accessories
Standard Accessories:
- Chuck Cover (Splash Cover)
- Chuck Draw Bar System
- Diamond Tool with Holder
- Necessary Tools and Tool Box
- Leveling Pad and Bolts
- Table Enclosure
Optional Accessories:
- Scroll Chuck
- Power Chuck
- Coolant System
- Spindle Speed from 10,000-60,000rpm
- Mist Collector
