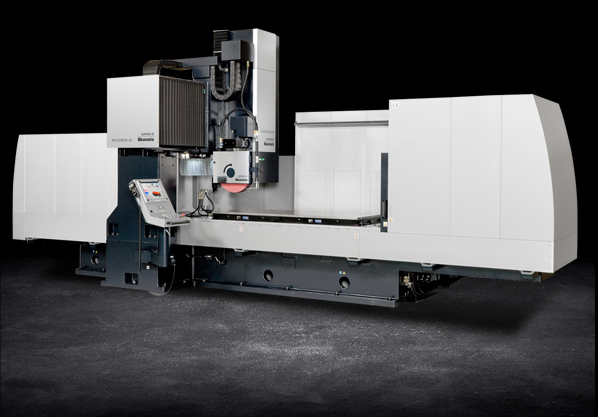

ACC-CHiQ Series
ACC-CHiQ Series
Double Column Type Surface Grinder
Overview/Features:
ACC-CHiQ Series are versatile. They deliver the high-accuracy required progressive dies yet provide the high-efficiency required by the die base processing industry.
- Heavy-Duty design and construction, yet an extremely small footprint.
- Easy-to-use Okamoto iQ Touch Screen Control.
- 30hp spindle motor delivers almost 3 times the power as conventional column type machines.
- Vee and Flat table ways assure true tracking and greater table load support.
- Shift-Plunge Cycle optimizes reduces processing times.
Specifications:
| Table Working Area W x L | 32″ x 80″ to 32″ x 140″ |
| Distance from Grinding Wheel to Table surface | 23.5″ |
| Grinding Wheel | 20″ x 4″ x 5″ |
| Grinding Wheel Spindle | 30 hp |
| Floor Space | 259″ x 152″ x 140″ to 402″ x 125″ x 94″ |
| Weight (Depending on model) | 34,200 to 44,100 lbs |
Standard & Optional Accessories
Standard Accessories:
- Grinding Wheel
- Hydraulic Upper Dresser
- Dress Stand with Diamond Tool
- Automatic Dress Compensation
- Spindle Speed Controller
- Automatic Oil Temperature Regulator
Optional Accessories:
- Coolant System with Magnetic Dust Separator
- Coolant System with Magnetic Dust Separator and Paper Filter System
- Electro Magnetic Chuck
- Grinding Wheel Balancing Stand w/Arbor
- Grinding Wheel Balancing Apparatus
- Dynamic Balancing Apparatus
- Signal Light
