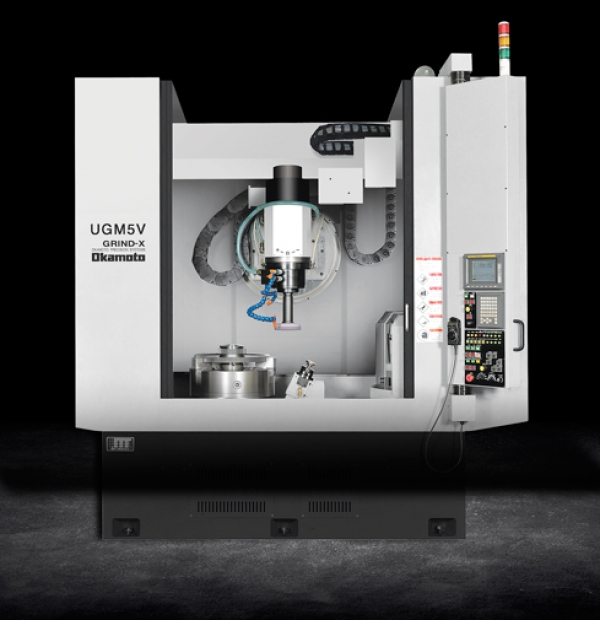

UGM-5V CNC Series
UGM-5V CNC Series
Universal Grinder
Overview/Features:
The UGM-5V Universal Grinder is ideal for high-precision grinding of large components. Robust design & construction and a powerful spindle motor easily process large, tough-to-grind parts. The added capability of angular grinding and an available automatic tool changer further enhance grinding capability and productivity.
- Angular, Internal, Cylindrical and Shoulder Grinding capability in a single set-up
- Superb design and construction delivers extreme roundness accuracies of 0.9 micrometers
- Single workpiece chucking optimizes straightness and cylindricity accuracies
- Compact design saves valuable floor space
- Standard rotary dresser
- Automatic wheelhead swivel standard
- Automatic Wheel Changer available
Features:

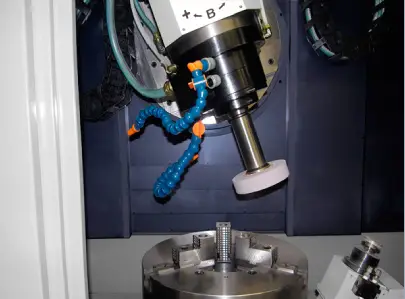

Versatile Angle Grinding
UGM Tool Changer

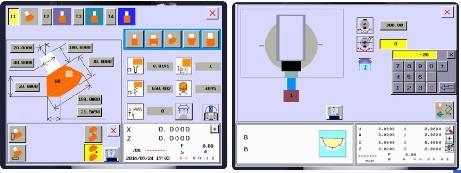

Conversion Software - For easy and language free setting up
Specifications:
| Internal Diameter to be Ground (mm) | 70 ~ 500 |
| Maximum Grinding Stroke (mm) | 450 |
| Work Rotation Speed(rpm) | 10 ~ 500 rpm |
| Wheel Spindle Speed(rpm) | 500 ~ 8,000 rpm |
| Grinding Spindle Power (kW) | 11 |
| Floor Space (W x D x H) (mm) | 2650 x 2508 x 3032 |
| Weight (Kg) | 7000 |
